Bamboo chapel
Cemetery and chapel: stepped graves following the topography, a light translucent building at the top — an ascent from earth to sky.

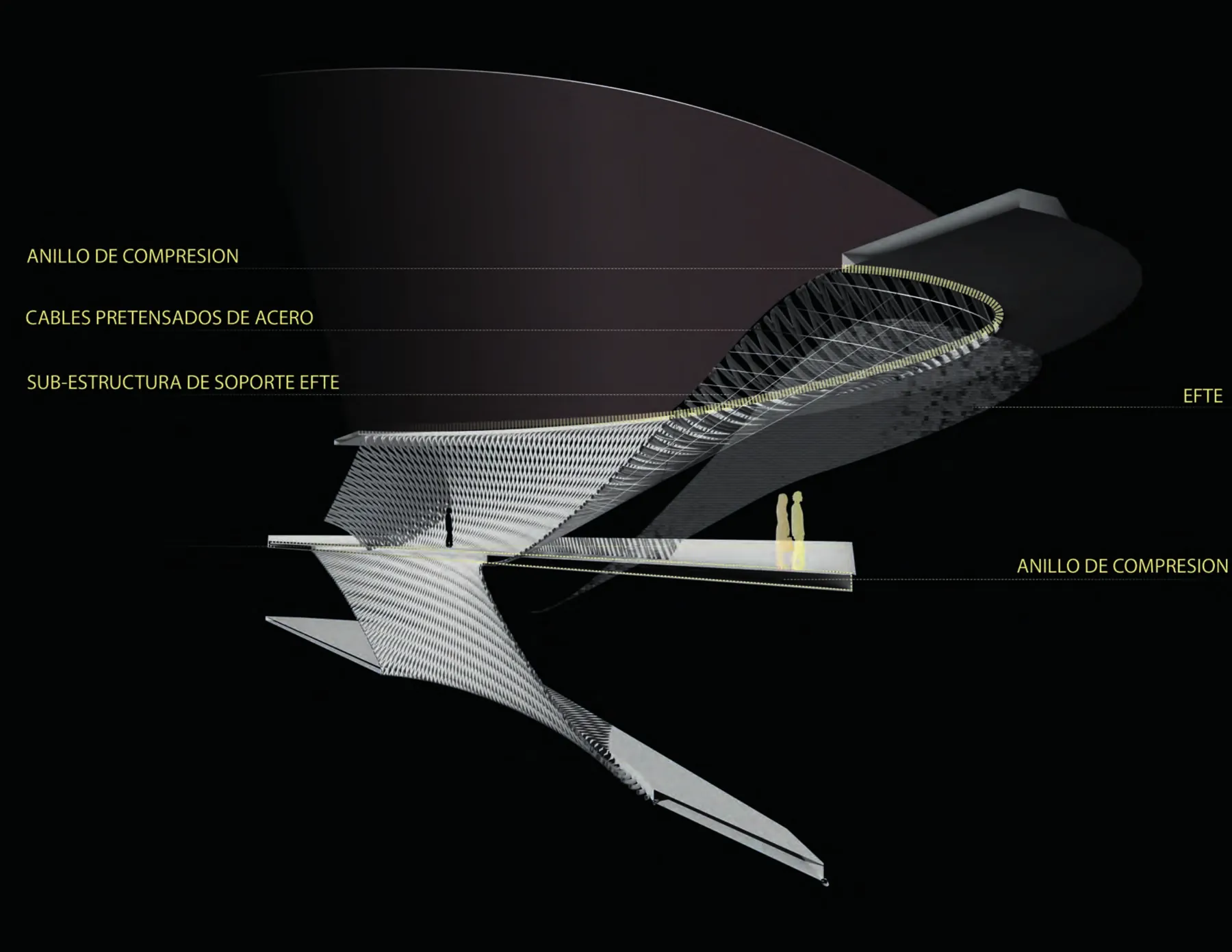

Structural axonometric
The structural axonometric brings the system’s elements together, complementing the separate views of material and structure.
Exterior
The exterior presents the lightweight chapel at the top of the complex, introducing the relationship between building, cemetery and terrain.
Path beneath the lattice
The route beneath the screen brings the reading closer to the experience of ascent and the filter accompanying movement.
Interior
The interior presents the chapel’s gathering space, contrasting the experience within the room with the exterior views.
Roof
The roof view concentrates on the building’s upper enclosure, bringing form, structure and interior space back into relation.
The nave
The nave closes the sequence in the chapel’s main space after examining landscape, material, structure and architectural organisation.

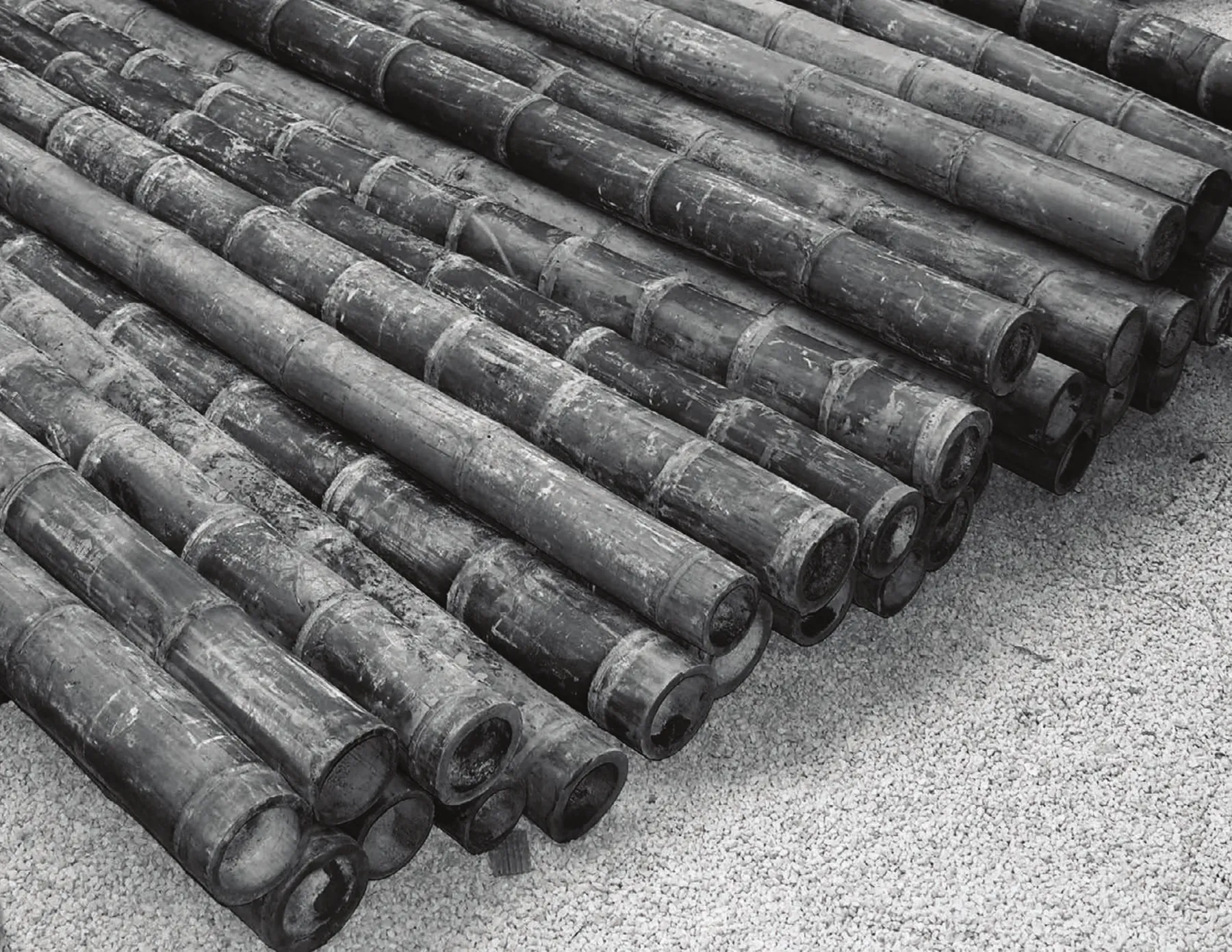

The bamboo
The bamboo image brings the project closer to its principal material and complements the overall reading of the lightweight building.

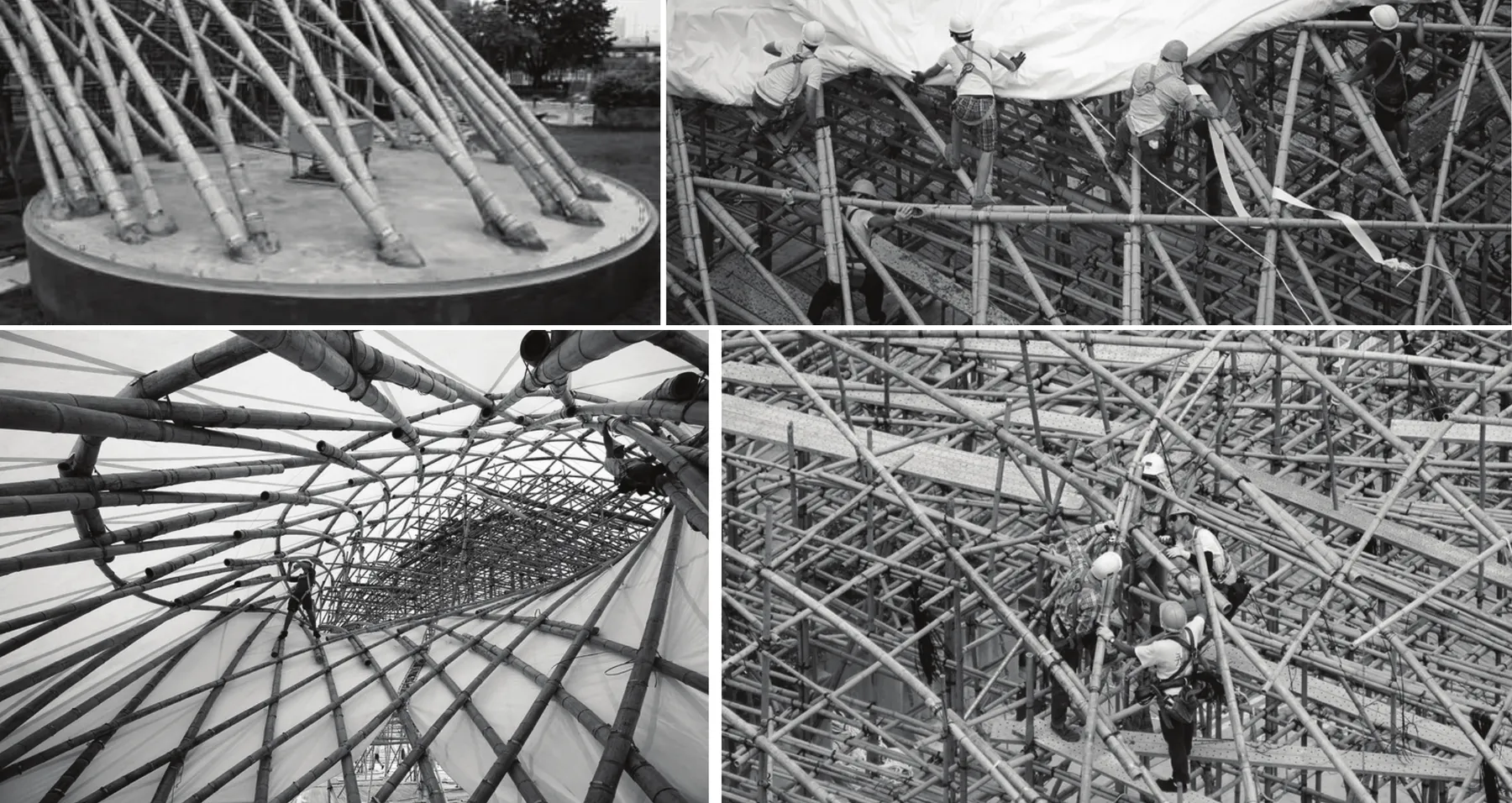

Structure
The structural view shifts attention from the exterior volume to the elements that articulate the chapel’s construction.
Site plan
The site plan relates the chapel to the stepped graves, placing the proposal within the overall organisation of the terrain.
Territorial model
Individual panel from the original sheet. Lines and labels remain unchanged; display scale is not a printing scale.
Section · programme below the route
Individual panel from the original sheet. Lines and labels remain unchanged; display scale is not a printing scale.

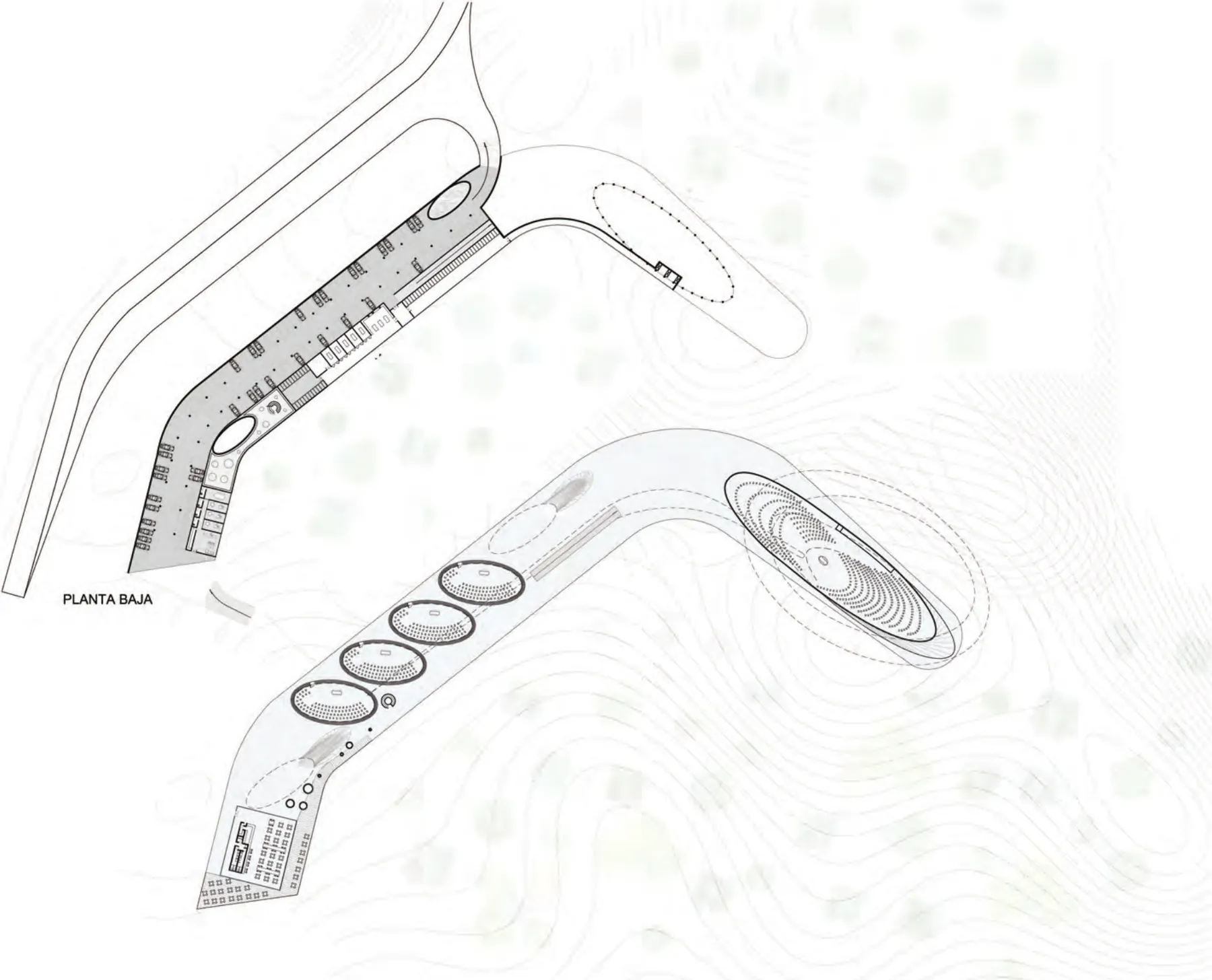

Plan
The plan documents the chapel’s horizontal organisation and complements the sequence between interior views and sections.
Profile
The profile focuses on the relationship between slope and construction, complementing the horizontal organisation shown in the site plan.
Territorial section 1
Individual panel from the original sheet. Lines and labels remain unchanged; display scale is not a printing scale.
Territorial section 2
Individual panel from the original sheet. Lines and labels remain unchanged; display scale is not a printing scale.
